Beschreibung

• Wattage: 2W/PCS
• Voltage: DC12V

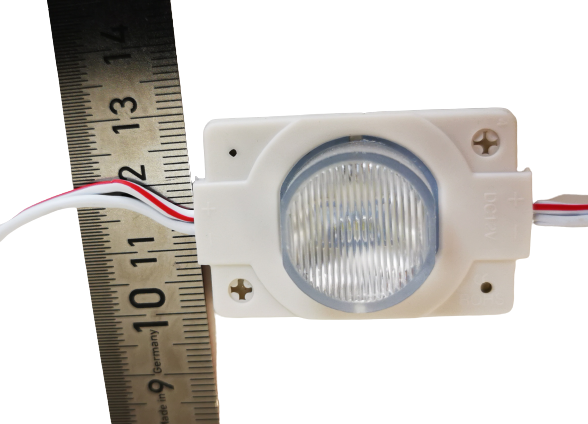

• Size: 45mm x 32mm
• IP Grade: IP68 Waterproof
• Beam Angle: 15×60º
• LED Type: Osram 3535
• Total Lumen: 300LM/PCS
• Emitting Colour: W, WW, R, B, G, Y, P,RGB
• Colour Rendering Index: RA85
  Life Span: 50000 Hours
•  Certification: CE,ROHS,UL

Product Specification

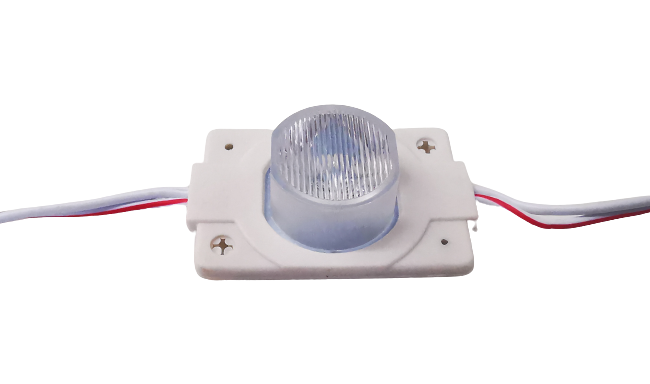

● Model:                                                GN-H3015
● LED Type:                                                    3535
● Chip Brand:                                             Osram
● Power:                                                      2w/pcs
● Work Voltage:                                       DC12V
● Waterproof Rate:                                    IP68
● Size:                                        L45*W32*H5mm
● Lumen:                                             300lm/pcs
● Beam Angle:                                         15×60º
● LED Quantity:                                 1 leds/pcs
● Lighting Color:                             Pure White
● Material: ABS housing+Aluminum PCB+Optical Lens

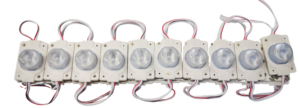

● Module Quantity/String:     20pcs/string
● Weight:                                        1.2kg/100pcs
● Work Temperature:          -40   -70 degree
● Warranty:                                               5 years

Features
● Sourced by high output Osram 3535;  SDCM ≤5 each BIN, good color conformity and no spot.
● 99.99% gold thread, pure copper bracket coated with silver.
● Constant current driving technology guarantees stable performance of product.
● Special lens design,15×60°beaming angle with well-distributed light.
● Over moulded design:anti-dusting, anti-moisture,waterproof, anti-shock.
● Ra>85,50,000 hours lifespan
● 20pcs/string.200pcs max in a series connection.
● High quaity 3M tape adhesive at back,with screw holes,easy to install and fix.
● CE,ROHS and UL certified.

Application
●Best for 10-120cm depth single or double-sided light box at airports, metros, banks, buildings and shopping malls etc.
